MSI GeForce RTX 5080 16GB VENTUS 3X OC PLUS

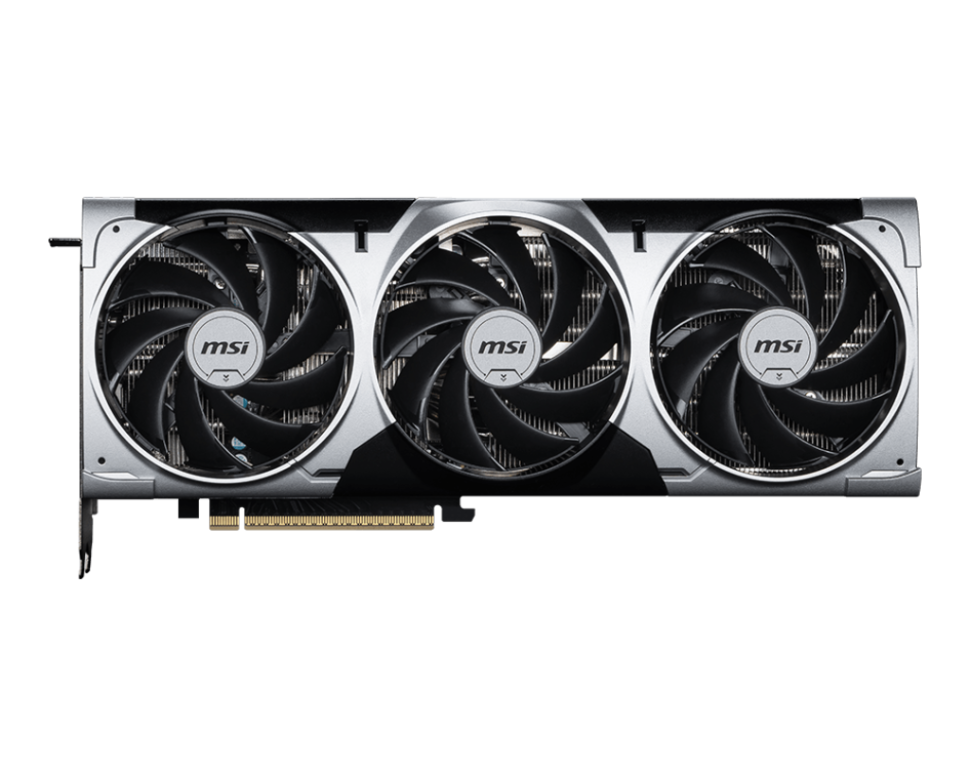

Triple Fan
Three fans and a huge heatsink ensure a cool and quiet experience for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickel- plated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

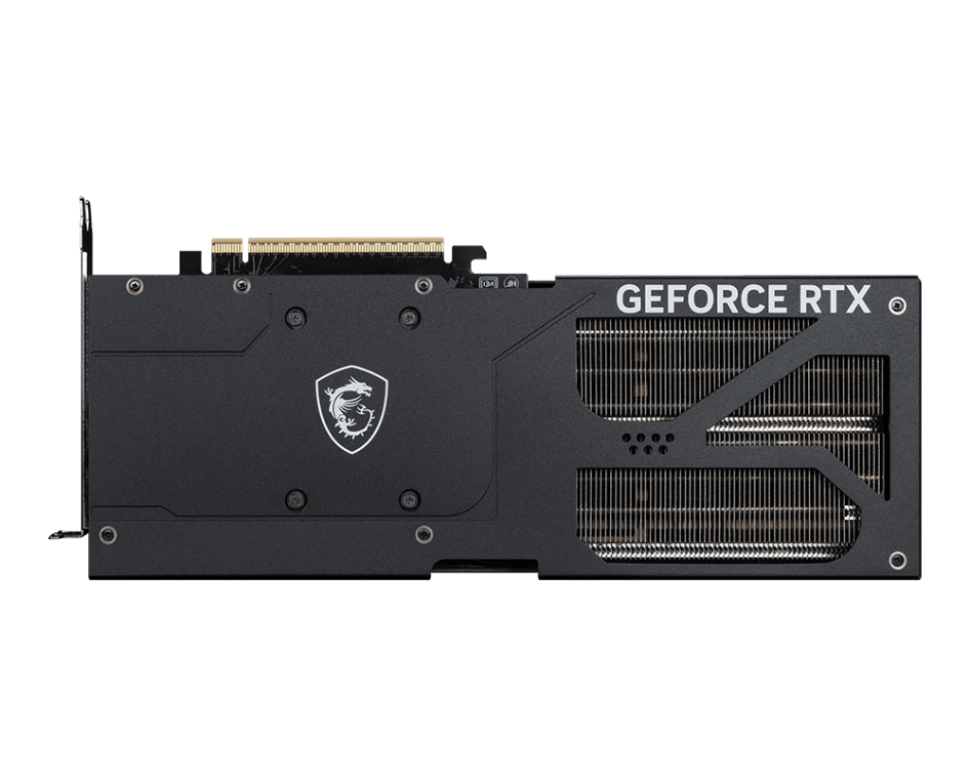

Metal Backplate
A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low, eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world

SPECIFICATIONS
Marketing Name GeForce RTX™ 5080 16G VENTUS 3X OC PLUS
Model Name G5080-16V3CP
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5
Core Clocks TBD
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1a)
HDMI™ x 1 (Supports 4K@120Hz HDR,
8K@60Hz HDR, and Variable Refresh Rate as
specified in HDMI™ 2.1b)
HDCP Support Y
Power consumption TBD

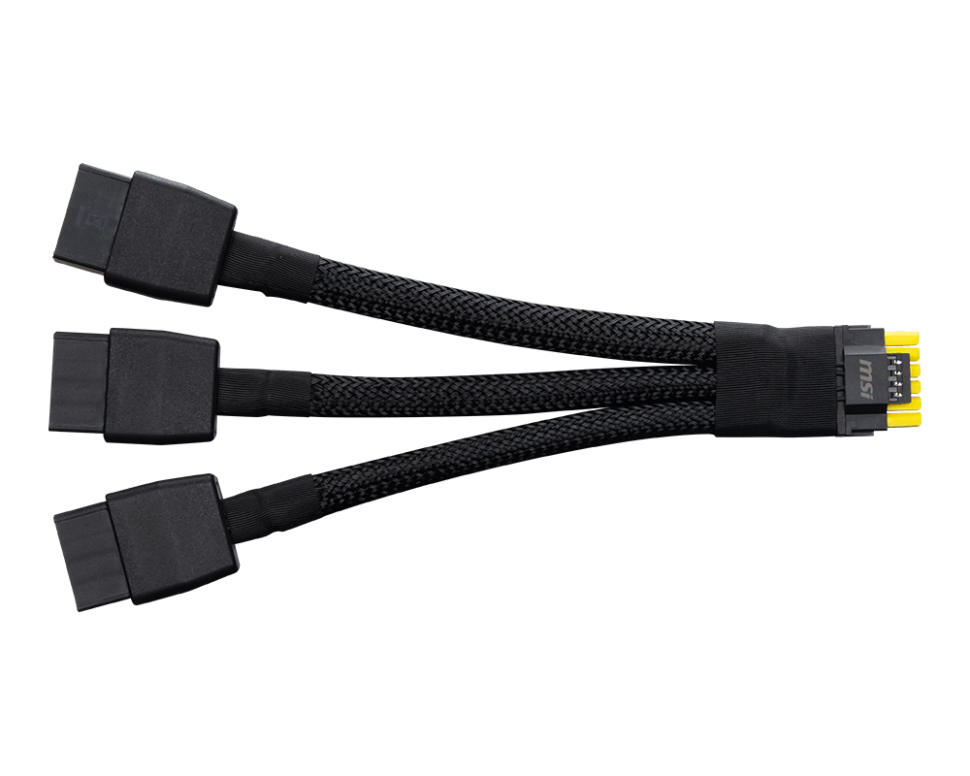

Power connectors 16-pin x 1
Recommended PSU TBD
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1105 g / TBD
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

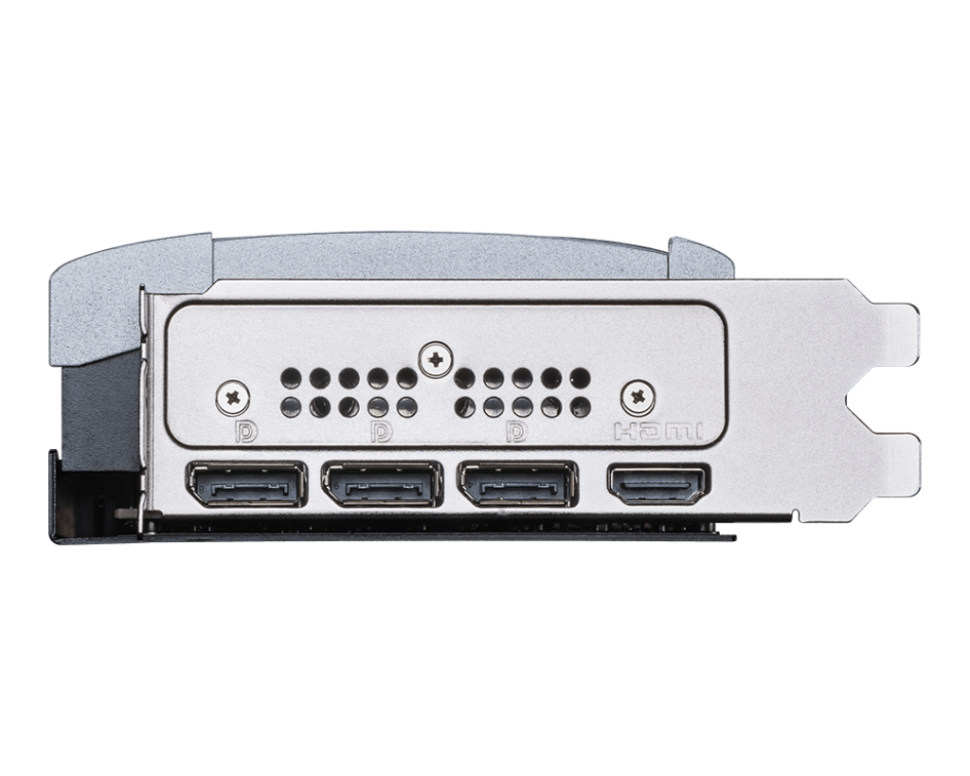

CONNECTIONS
3x DisplayPort
1x HDMI
